UV Master Technology

Highly concentrated UV radiations.

Easy To Handle

Lamp stand or holder to add versatility.

Long Lifetime

Anodized aluminum housing.

Ondulex Reflector

Reflect  the maximum UV output.

Table Of Products

Our large choice of filter and unfiltered lamps range from 6 to 3×40 w-watt. Our filtered lamps are ideal for the fluorescence detection. The BL-Black-Light lamps provides a large light spectrum with 365nm UV and visible light. The UV germicidal 254nm lamps help to prevents contamination in research laboratories.

Table Of Products

Our large choice of filter and unfiltered lamps range from 6 to 3×40 w-watt. Our filtered lamps are ideal for the fluorescence detection. The BL-Black-Light lamps provides a large light spectrum with 365nm UV and visible light. The UV germicidal 254nm lamps help to prevents contamination in research laboratories.

Lamps 6W - Filtered
Model Wavelength (nm) Tubes x Power (W) Irradiance (mW/cm²)
VL-6.LC 365 / 254 1 x 6 365nm & 1 x 6 254nm 0.610 for 356nm – 0.400 for 254nm
VL-6.L 365 1 x 6 0.700
VL-6.C 254 1 x 6 0.710
Lamps 15W - Filtered
Model Wavelength (nm) Tubes x Power (W) Irradiance (mW/cm²)
VL-215-LM 365/312 1 x 15 365nm & 1 x 15 312nm 1.350 for 356nm – 1.800 for 312nm
VL-215-LC 365/254 1 x 15 365nm & 1 x 15 254nm 1.350 for 356nm – 0.930 for 254nm
VL-215-MC 312/254 1 x 15 312nm & 1 x 15 254nm 1.800 for 312nm – 0.930 for 254nm
VL-215-L 365 2 x 15 2.300
VL-215-M 312 2 x 15 2.200
VL-215-C 254 2 x 15 1.780
VL-115-L 365 1 x 15 1.100
VL-115-M 312 1 x 15 1.100
VL-115-C 254 1 x 15 0.730
Lamps 6W - Unfiltered
Model Wavelength (nm) Filter Size (mm) Irradiance (mW/cm²) (1)
VL-206.BL 365 2 x 6 1.215

(1) Irradiance measured at 2 meters, except * measured at 15cm

Lamps 15W - Unfiltered
Model Wavelength (nm) Tubes x Power (W) Irradiance (mW/cm²) (1)
VL-315.BL 365 3 x 15 0.147
VL-215.BL 365 2 x 15 0.108
VL-115.BL 365 1 x 15 0.050

(1) Irradiance measured at 2 meters, except * measured at 15cm

Lamps 30W - Unfiltered
Model Wavelength (nm) Tubes x Power (W) Irradiance (mW/cm²) (1)
VL-330.BL 365 3 x 30 0.312
VL-230.BL 365 2 x 30 0.228
VL-130.BL 365 1 x 30 0.106

(1) Irradiance measured at 2 meters, except * measured at 15cm

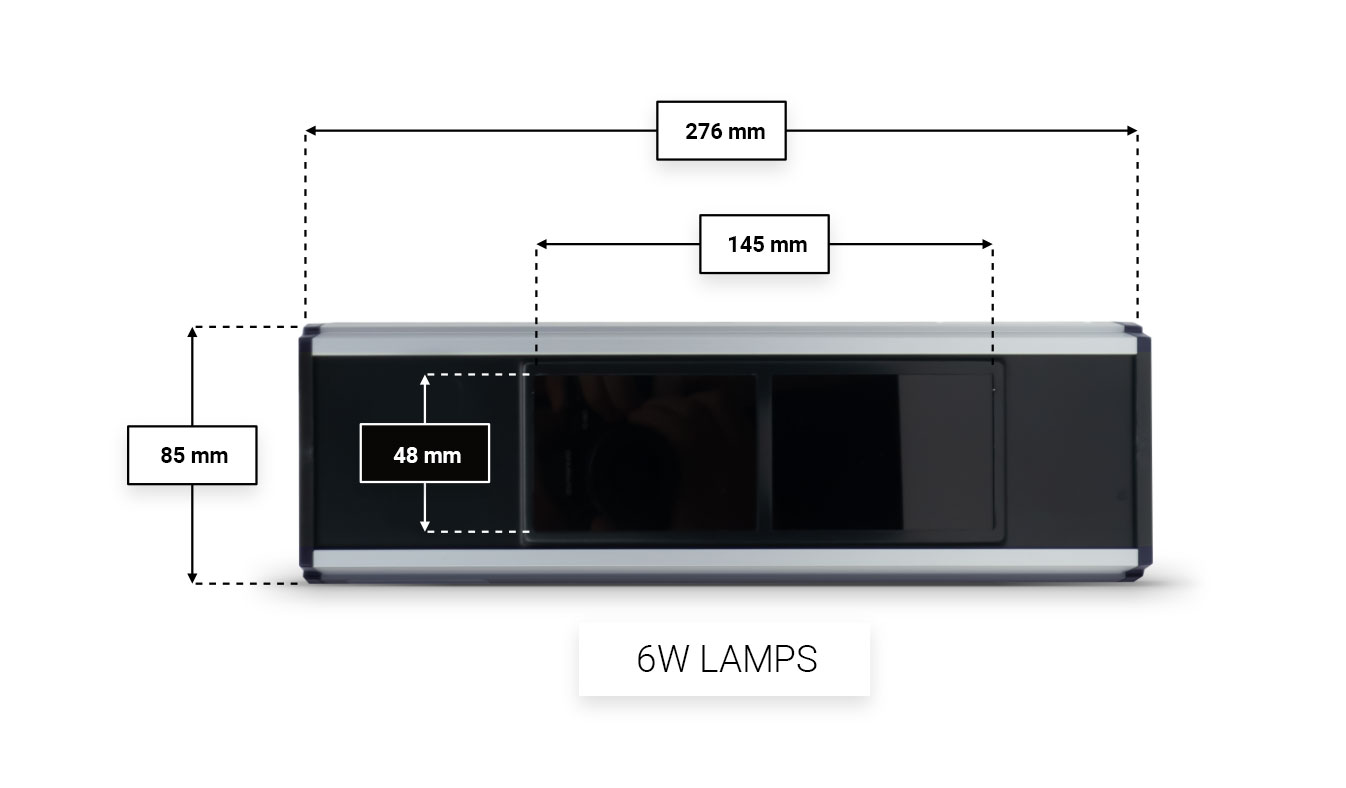

Filtered Lamps Dimensions

6W
15W

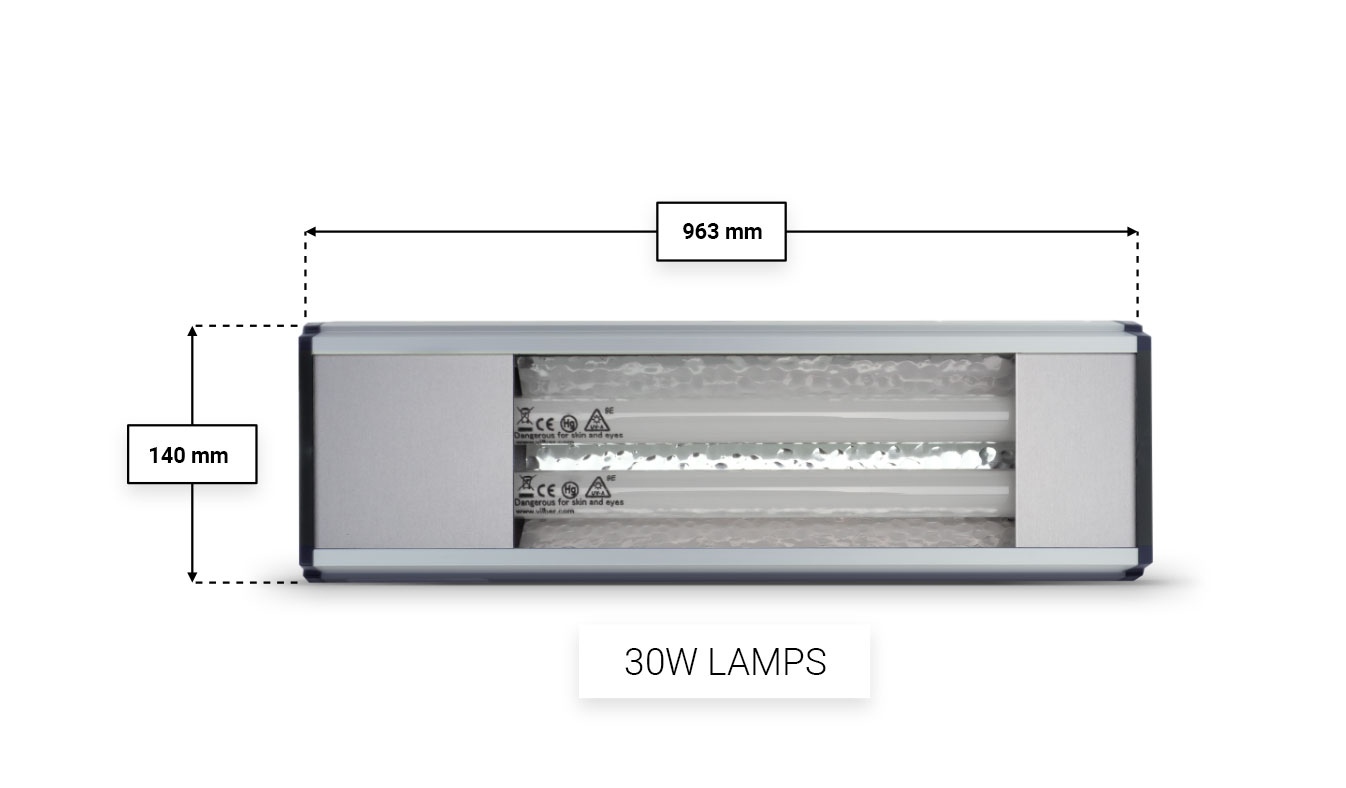

Unfiltered Lamps Dimensions

6W
15W
30W

Benchtop

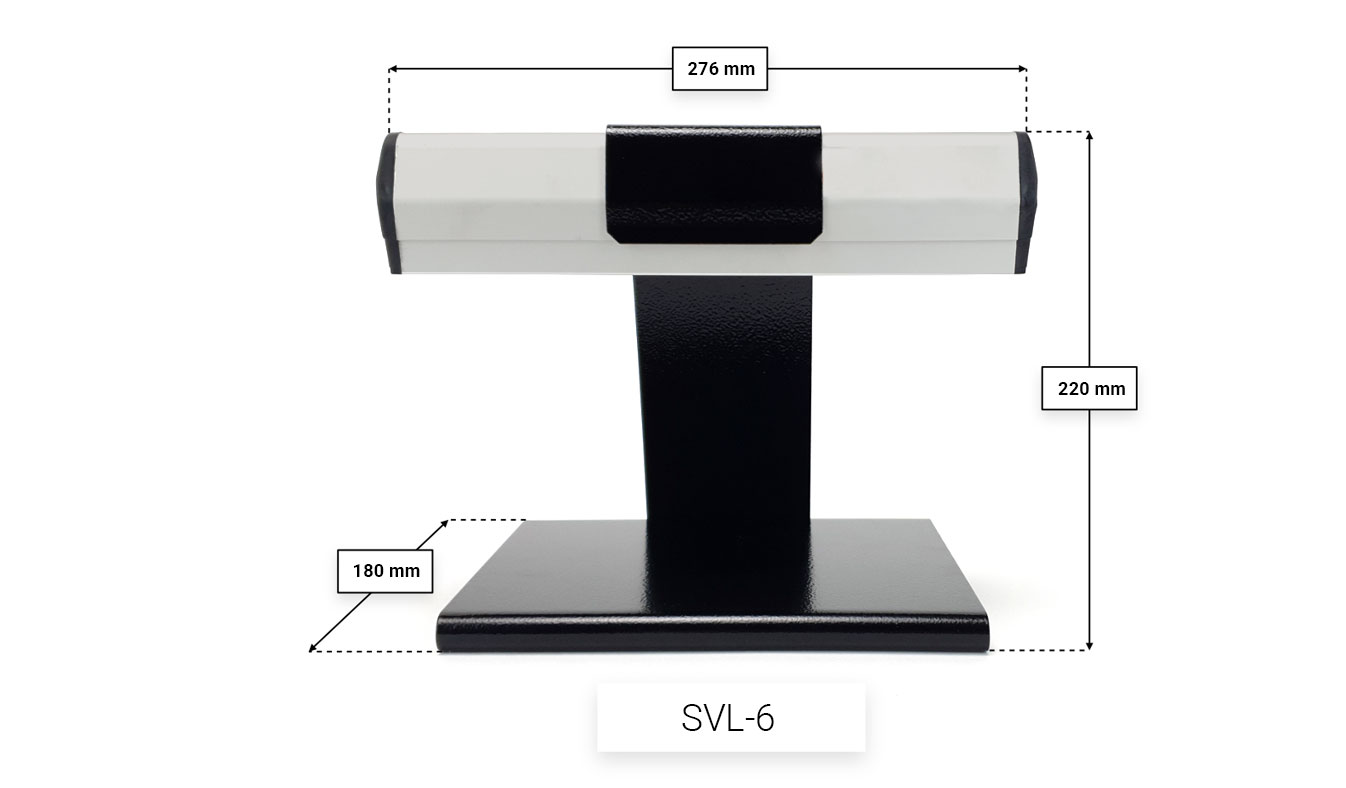

SVL-6 for 6W Lamps
SVL-15 for 15W Lamps

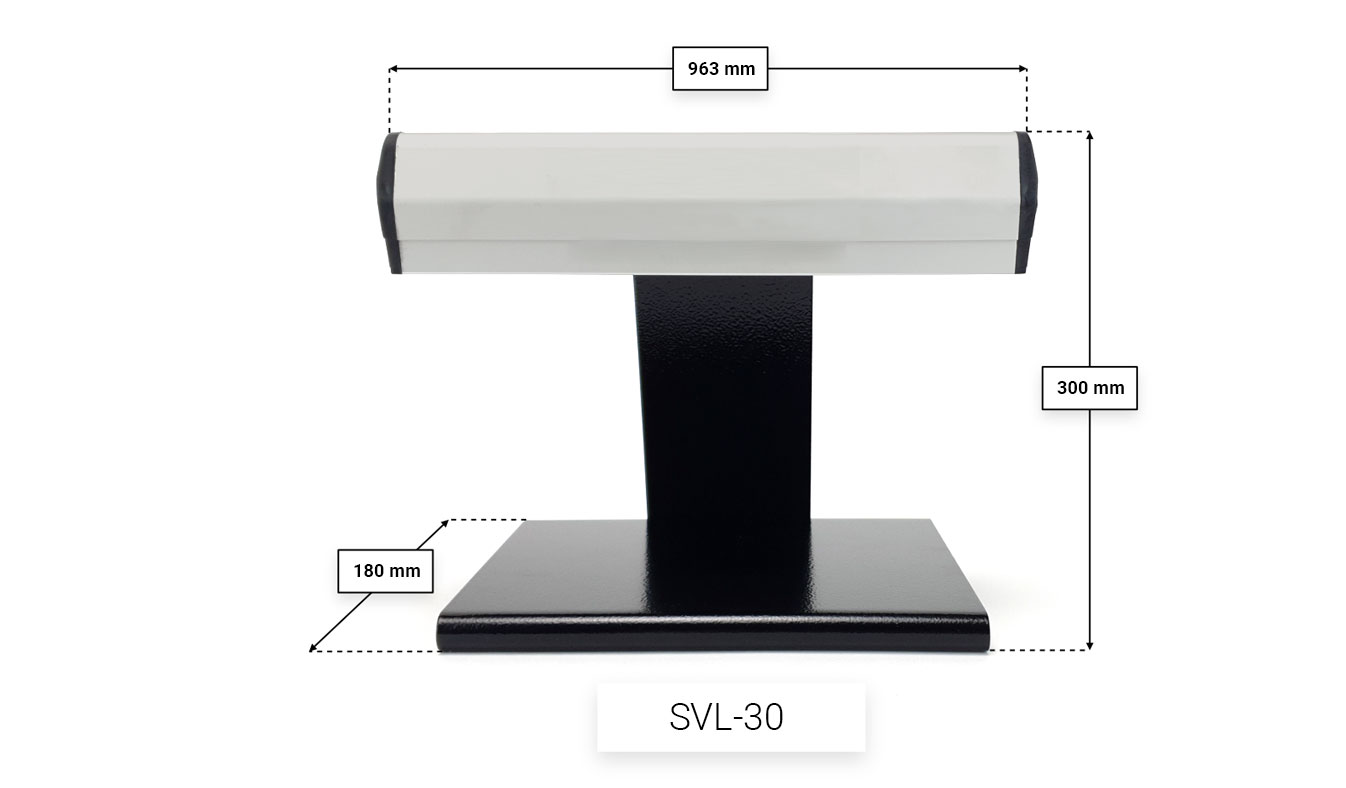

SVL-30 for 30W Lamps

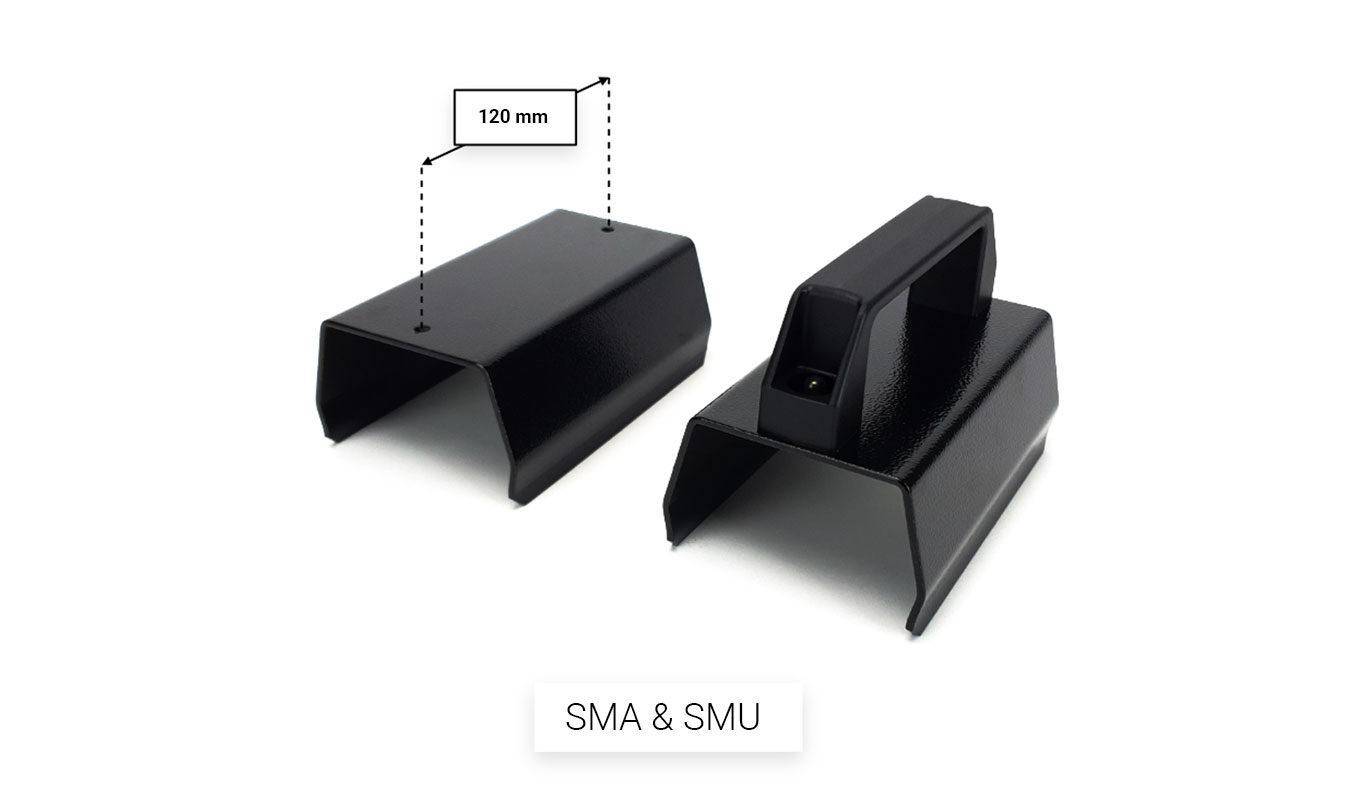

wall fixing and handle

SMA & SMU

Specifications & Download
