High UV Radiation

Thanks to our special lamp glass filters and coating.

Long Lifetime

Thousands hours of light.

Unique Electrode

Technology for enhanced reliability.

Constant UV Spectrum

Over the complete lifetime.

Wavelength’s Curves

Our original UV tubes emit highly concentrated Uv radiation. They use a special ultraviolet ray glasses which efficiency transmit the ultraviolet rays.

Wavelength’s Curves

Find our Wavelength’s Curves of our UV Tubes. The Ultraviolet spectrum extends from 180 to 380 nanometers (nm) and is divided into three categories. UV-A, UV-B and UV-C.

uv-tube

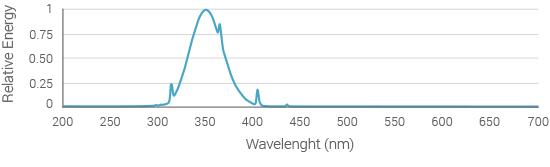

spectral-engergy-distribution-365nm

UV-A
Peak wavelength : 365nm
6, 8, 15, 20, 30, 40 watt available
G5 & G13 Cap

uv-tube

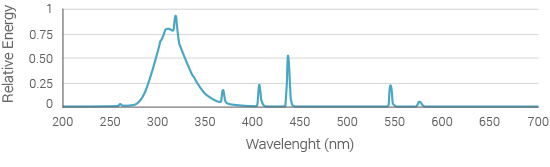

spectral-engergy-distribution-312nm

UV-B
Peak wavelength : 312nm
8, 15, 40 watt available
G5 & G13 Cap

uv-tube

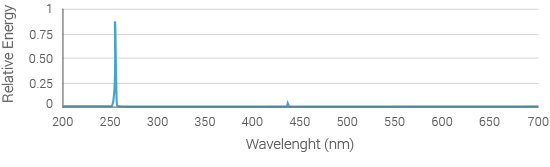

spectral-engergy-distribution-254nm

UV-C
Peak wavelength : 254nm
6, 8, 15, 20, 30, 40 watt available
G5 & G13 Cap

Tables Of Products

Our original UV tubes emit highly concentrated Uv radiation. They use a special ultraviolet ray glasses which efficiency transmit the ultraviolet rays.

Tables Of Products

Our original UV tubes emit highly concentrated Uv radiation. They use a special ultraviolet ray glasses which efficiency transmit the ultraviolet rays.

Tubes 6W
Model Wavelength (nm) Wattage (W) Ultraviolet Output (W)(1) Average Useful Life (Hours)(2)
T-6.L 365 6 0.5 3000
T-6.C 254 6 1.7 6000
Tubes 8W
Model Wavelength (nm) Wattage (W) Ultraviolet Output (W)(1) Average Useful Life (Hours)(2)
T-8.L 365 8 1.4 3000
T-8.M 312 8 1.6 3000
T-8.C 254 8 2.5 6000
Tubes 15W
Model Wavelength (nm) Wattage (W) Ultraviolet Output (W)(1) Average Useful Life (Hours)(2)
T-15.L 365 15 2.6 4000
T-15.M 312 15 3.0 4000</td
T-15.C 254 15 4.9 8000</td
Tubes 20W
Model Wavelength (nm) Wattage (W) Ultraviolet Output (W)(1) Average Useful Life (Hours)(2)
T-20.L 365 20 3.7 4000
T-20.C 254 20 7.5 8000
Tubes 30W
Model Wavelength (nm) Wattage (W) Ultraviolet Output (W)(1) Average Useful Life (Hours)(2)
T-30.L 365 30 6.2 4000
T-30.C 254 30 13.4 8000
Tubes 40W
Model Wavelength (nm) Wattage (W) Ultraviolet Output (W)(1) Average Useful Life (Hours)(2)
T-40.L 365 40 8.1 5000
T-40.M 312 40 9.3 5000
T-40.C 254 40 19.8 8000

(1) After 100 hours lighting. Total amount of the ultraviolet from 200 to 380nm.
(2) The useful life is defined as when the ultraviolet ray output becomes 60% of the initial output (measured after the first 100 hours lighting).
Such measured are made in a continuous lighting pattern model. It does not include potential switch on / off. Higher is the number of switch on, lower is the useful life of the UVA tubes.

The UV light source emits powerful UV light at a center wavelength of 254, 312 or 365 nm. Do not expose yourself to UV rays. Never look directly the UV source with unprotected eyes. UV rays can cause eye and skin damage, eyes inflammation, vision problems and early skin aging or cancer. It can also cause allergies or allergic reactions in the eyes and/or skin. Never try to stare at the light source. The use of any medication or cosmetics can increase sensitivity to UV rays. If you have taken any medication, have a history of skin disease, or are suspected of being sensitive to sunlight, consult a physician before using this system. When the light source shines, it is mandatory to wear appropriate protective equipment. Protective equipment includes, for example, safety glasses or full face protection for the eyes, rubber gloves for the hands and long-sleeved clothing. UV tubes contain mercury, which must be recycled or disposed of in accordance with your local regulations.
