Multispectral Imaging
Up to 7 excitations channels in the IR, NIR visible RGB and UV area.
![picto-pulse](https://www.vilber.com/wp-content/uploads/2016/07/picto-pulse.png)
![picto-pulse-circle](https://www.vilber.com/wp-content/uploads/2016/07/picto-pulse-circle.png)
Pulse Light
Extremely powerful excitation light for low protein abundance.
![picto-led](https://www.vilber.com/wp-content/uploads/2016/07/picto-led.png)
![picto-led-circle](https://www.vilber.com/wp-content/uploads/2016/07/picto-led-circle.png)
Spectra LED
Our LED deliver instantly the defined power for a better reproducibility.
![picto-narrow](https://www.vilber.com/wp-content/uploads/2016/07/picto-narrow.png)
![picto-narrow-circle](https://www.vilber.com/wp-content/uploads/2016/07/picto-narrow-circle.png)
Narrow Bandpass Filters
Minimal spectral overlap and high signal to noise ratio.
Spectral Imaging At Your Fingertips

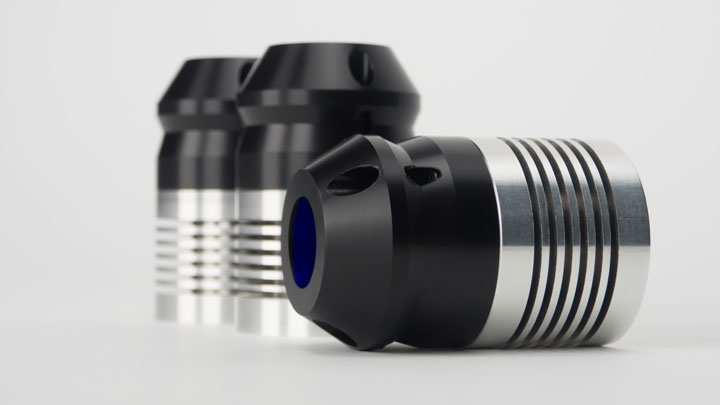

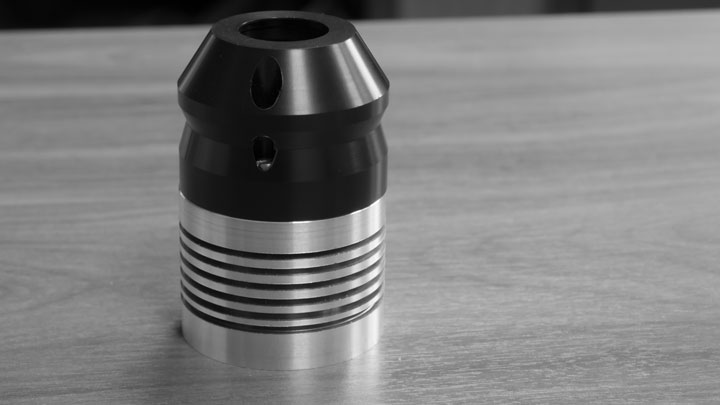

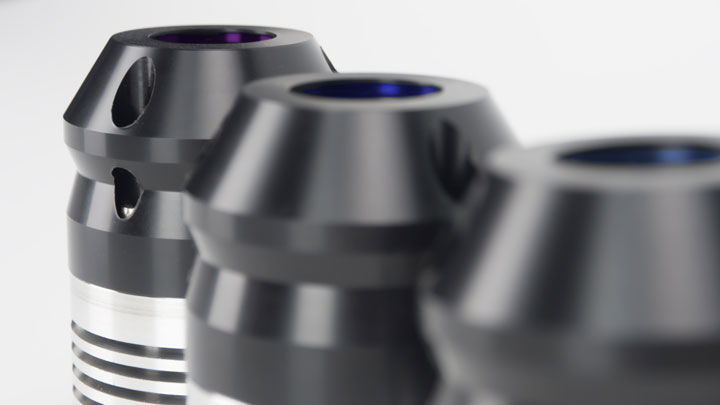

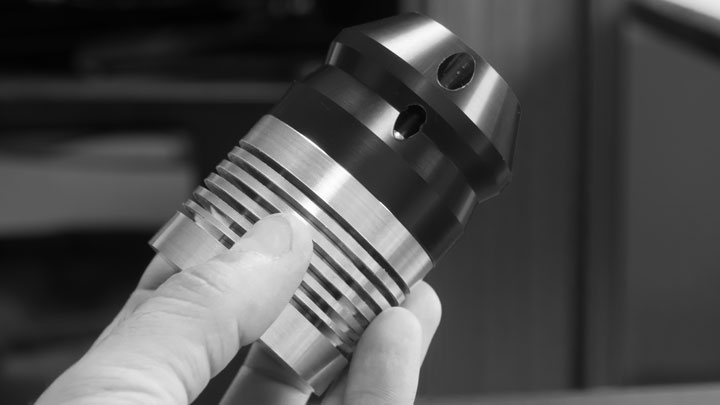

The Spectra Light Capsules are powerful fluorescence exciters with focused light for uniform illumination and enhanced power. Equipped with primary and secondary optics, the Light Capsules are categorized as Laser Class II due to their intense power.
Spectral Imaging At Your Fingertips
The Spectra Light Capsules are powerful fluorescence exciters with focused light for uniform illumination and enhanced power. Equipped with primary and secondary optics, the Light Capsules are categorized as Laser Class II due to their intense power.
Narrow Bandpass filters
- Dual magnetron sputtering technology for the highest filter transmittance
Light Pass
- Collimate the light to reduce the angle of incidence for a better filter performance
![Spectra-Capsules-Split Spectra-Capsules-Split](https://www.vilber.com/wp-content/uploads/2017/07/Spectra-Capsules-Split.jpg)
Secondary Optics
- Uniform illumination
Primary Optics
- Focus the LED light
Pulsed LED
- AlGaInP, InGaN or AlGaAs medical grade light source
Narrow Bandpass filters
- Dual magnetron sputtering technology for the highest filter transmittance
Light Pass
- Collimate the light to reduce the angle of incidence for a better filter performance
![Spectra-Capsules-Split Spectra-Capsules-Split](https://www.vilber.com/wp-content/uploads/2017/07/Spectra-Capsules-Split.jpg)
Secondary Optics
- Uniform illumination
Primary Optics
- Focus the LED light
Pulsed LED
- AlGaInP, InGaN or AlGaAs medical grade light source
![Spectra-Capsules-Split Spectra-Capsules-Split](https://www.vilber.com/wp-content/uploads/2017/07/Spectra-Capsules-Split.jpg)
Narrow Bandpass filters
- Dual magnetron sputtering technology for the highest filter transmittance
Light Pass
- Collimate the light to reduce the angle of incidence for a better filter performance
Secondary Optics
- Uniform illumination
Primary Optics
- Focus the LED light
Pulsed LED
- AlGaInP, InGaN or AlGaAs medical grade light source
![schema schema](https://www.vilber.com/wp-content/uploads/2017/07/schema.jpg)
Capsule Of Light Spectrum
The Spectra Light Capsules offers proven reliability and superior performance. Our standard range of 8 Light Capsules allow you a wide variety of possible applications in the UV, the visible and the IR ranges.
Capsule Of Light Spectrum
The Spectra Light Capsules offers proven reliability and superior performance. Our standard range of 8 Light Capsules allow you a wide variety of possible applications in the UV, the visible and the IR ranges.
![spectra-capsule-780nm spectra-capsule-780nm](https://www.vilber.com/wp-content/uploads/2017/07/spectra-capsule-780nm.jpg)
![capsule-of-light-spectrum-780nm capsule-of-light-spectrum-780nm](https://www.vilber.com/wp-content/uploads/2017/07/capsule-of-light-spectrum-780nm.jpg)
Peak wavelength : 780nm
Chip material : AlGaAs
Blocking index: O.D. 5.5
Laser Class II
![spectra-capsule-740nm spectra-capsule-740nm](https://www.vilber.com/wp-content/uploads/2017/07/spectra-capsule-740nm.jpg)
![capsule-of-light-spectrum-740nm capsule-of-light-spectrum-740nm](https://www.vilber.com/wp-content/uploads/2017/07/capsule-of-light-spectrum-740nm.jpg)
Peak wavelength : 740nm
Chip material : AlGaAs
Blocking index: O.D. 5.5
Laser Class II
![spectra-capsule-680 spectra-capsule-680](https://www.vilber.com/wp-content/uploads/2017/07/spectra-capsule-680.jpg)
![capsule-of-light-spectrum-680nm capsule-of-light-spectrum-680nm](https://www.vilber.com/wp-content/uploads/2017/07/capsule-of-light-spectrum-680nm.jpg)
Peak wavelength : 680nm
Chip material : AlGaInP
Blocking index: O.D. 5.5
Laser Class II
![spectra-capsule-640nm spectra-capsule-640nm](https://www.vilber.com/wp-content/uploads/2017/07/spectra-capsule-640nm.jpg)
![capsule-of-light-spectrum-640nm capsule-of-light-spectrum-640nm](https://www.vilber.com/wp-content/uploads/2017/07/capsule-of-light-spectrum-640nm.jpg)
Peak wavelength : 640nm
Chip material : AlGaInP
Blocking index: O.D. 5.5
Laser Class II
![spectra-capsule-530nm spectra-capsule-530nm](https://www.vilber.com/wp-content/uploads/2017/07/spectra-capsule-530nm.jpg)
![capsule-of-light-spectrum-530nm capsule-of-light-spectrum-530nm](https://www.vilber.com/wp-content/uploads/2017/07/capsule-of-light-spectrum-530nm.jpg)
Peak wavelength : 530nm
Chip material : AlGaInP
Blocking index: O.D. 5.5
Laser Class II
![spectra-capsule-480nm spectra-capsule-480nm](https://www.vilber.com/wp-content/uploads/2017/07/spectra-capsule-480nm.jpg)
![capsule-of-light-spectrum-480nm capsule-of-light-spectrum-480nm](https://www.vilber.com/wp-content/uploads/2017/07/capsule-of-light-spectrum-480nm.jpg)
Peak wavelength : 480nm
Chip material : AlGaInP
Blocking index: O.D. 5.5
Laser Class II
![spectra-capsule-440nm spectra-capsule-440nm](https://www.vilber.com/wp-content/uploads/2017/07/spectra-capsule-440nm.jpg)
![capsule-of-light-spectrum-440nm capsule-of-light-spectrum-440nm](https://www.vilber.com/wp-content/uploads/2017/07/capsule-of-light-spectrum-440nm.jpg)
Peak wavelength : 440nm
Chip material : AlGaInP
Blocking index: O.D. 5.5
Laser Class II
![spectra-capsule-365nm spectra-capsule-365nm](https://www.vilber.com/wp-content/uploads/2017/07/spectra-capsule-365nm.jpg)
![capsule-of-light-spectrum-365nm capsule-of-light-spectrum-365nm](https://www.vilber.com/wp-content/uploads/2017/07/capsule-of-light-spectrum-365nm.jpg)
Peak wavelength : 365nm
Chip material : InGaN
Blocking index: O.D. 5.5
Laser Class II
Emission Filter Spectrum
Our filter combines the most sophisticated ion-beam-sputtering deposition systems, with our proprietary aperture disk for enhanced signal to noise ratio. Steeper edges, precise wavelength accuracy, and carefully optimized blocking mean better contrast and faster measurements.
Emission Filter Spectrum
Our filter combines the most sophisticated ion-beam-sputtering deposition systems, with our proprietary aperture disk for enhanced signal to noise ratio. Steeper edges, precise wavelength accuracy, and carefully optimized blocking mean better contrast and faster measurements.
![Filter Filter](https://www.vilber.com/wp-content/uploads/2017/07/Filter.jpg)
![emission-filter-spectrum-850nm emission-filter-spectrum-850nm](https://www.vilber.com/wp-content/uploads/2017/07/emission-filter-spectrum-850nm.jpg)
Reference : F-850
Typical Range: 830-870nm
Sputtered magnetron technology.
Hard coated.
![Filter Filter](https://www.vilber.com/wp-content/uploads/2017/07/Filter.jpg)
![emission-filter-spectrum-820nm emission-filter-spectrum-820nm](https://www.vilber.com/wp-content/uploads/2017/07/emission-filter-spectrum-820nm.jpg)
Reference : F-800
Typical Range: 800-840nm
Sputtered magnetron technology.
Hard coated.
![Filter Filter](https://www.vilber.com/wp-content/uploads/2017/07/Filter.jpg)
![emission-filter-spectrum-750nm emission-filter-spectrum-750nm](https://www.vilber.com/wp-content/uploads/2017/07/emission-filter-spectrum-750nm.jpg)
Reference : F-750
Typical Range: 710-760nm
Sputtered magnetron technology.
Hard coated.
![Filter Filter](https://www.vilber.com/wp-content/uploads/2017/07/Filter.jpg)
![emission-filter-spectrum-710nm emission-filter-spectrum-710nm](https://www.vilber.com/wp-content/uploads/2017/07/emission-filter-spectrum-710nm.jpg)
Reference : F-700
Typical Range: 690-720nm
Sputtered magnetron technology.
Hard coated.
![Filter Filter](https://www.vilber.com/wp-content/uploads/2017/07/Filter.jpg)
![emission-filter-spectrum-655 emission-filter-spectrum-655](https://www.vilber.com/wp-content/uploads/2017/07/emission-filter-spectrum-655.jpg)
Reference :F-650
Typical Range: 640-670nm
Sputtered magnetron technology.
Hard coated.
![Filter Filter](https://www.vilber.com/wp-content/uploads/2017/07/Filter.jpg)
![emission-filter-spectrum-595 emission-filter-spectrum-595](https://www.vilber.com/wp-content/uploads/2017/07/emission-filter-spectrum-595.jpg)
Reference : F-600
Typical Range: 580-540nm
Sputtered magnetron technology.
Hard coated.
![Filter Filter](https://www.vilber.com/wp-content/uploads/2017/07/Filter.jpg)
![emission-filter-spectrum-565nm emission-filter-spectrum-565nm](https://www.vilber.com/wp-content/uploads/2017/07/emission-filter-spectrum-565nm.jpg)
Reference : F-550
Typical Range: 550-580nm
Sputtered magnetron technology.
Hard coated.
![Filter Filter](https://www.vilber.com/wp-content/uploads/2017/07/Filter.jpg)
![emission-filter-spectrum-535nm emission-filter-spectrum-535nm](https://www.vilber.com/wp-content/uploads/2017/07/emission-filter-spectrum-535nm.jpg)
Reference : F-500
Typical Range: 530-550nm
Sputtered magnetron technology.
Hard coated.
