![](https://www.vilber.com/wp-content/uploads/2017/11/picto-large-capacity.png)
![](https://www.vilber.com/wp-content/uploads/2017/11/picto-large-capacity-circle.png)
Large Capacity
Ideal for small or large sample.
![](https://www.vilber.com/wp-content/uploads/2017/11/picto-shield.png)
![](https://www.vilber.com/wp-content/uploads/2017/11/picto-shield-circle.png)
UV Absorber Shield
Protect the user from the UV light.
![](https://www.vilber.com/wp-content/uploads/2017/11/picto-combination.png)
![](https://www.vilber.com/wp-content/uploads/2017/11/picto-combination-circle.png)
Combination Of UV Sources
UVA, UVB and UVC can be combined at your convenience.
![](https://www.vilber.com/wp-content/uploads/2017/11/picto-easy-access.png)
![](https://www.vilber.com/wp-content/uploads/2017/11/picto-easy-access-circle.png)
Easy Access To Darkroom
Ideal for mineralogy or TLC plate.
Tables Of Products
Our UV darkroom provide a large effective capacity and a high detection sensitivity. They could offer any combination of UV sources, simultaneously or not.
Tables Of Products
Our UV darkroom provide a large effective capacity and a high detection sensitivity. They could offer any combination of UV sources, simultaneously or not.

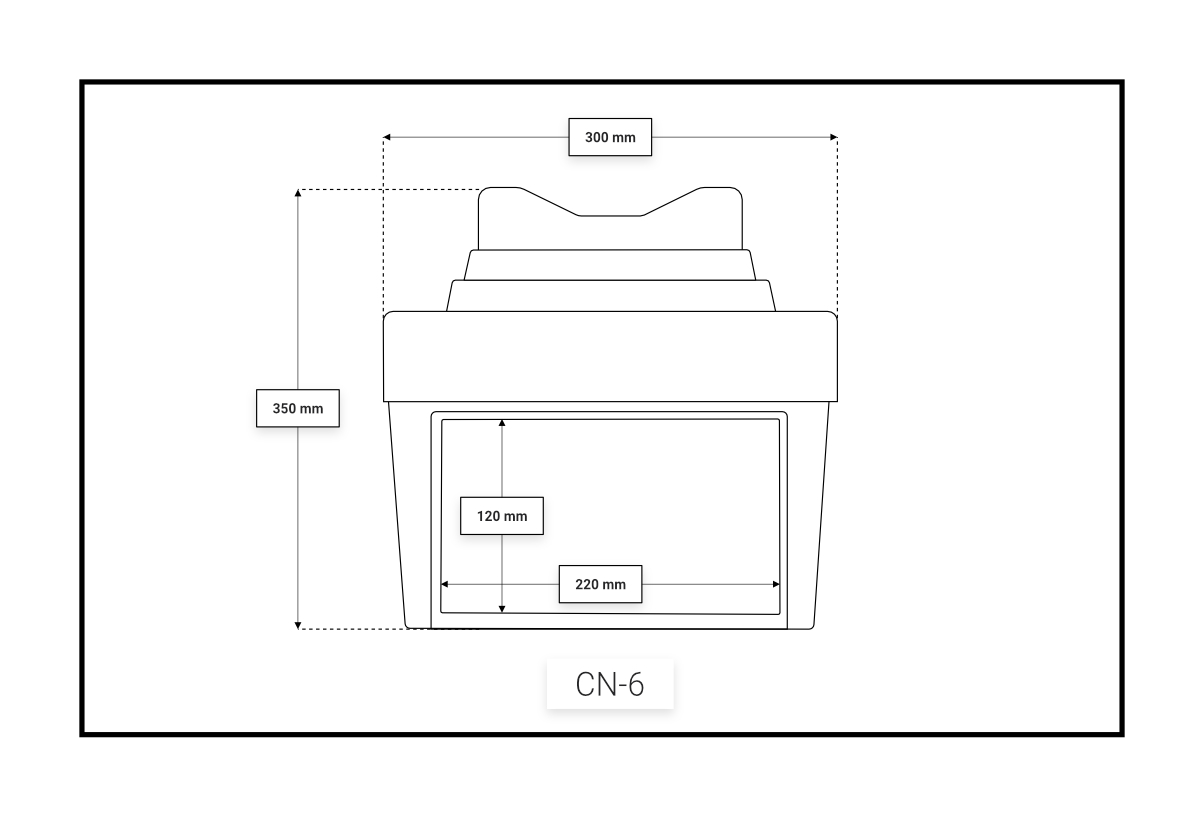

CABINET CN-6
The CN-6 darkroom contains one or two portable UV lamps, VL-6 model, in one or two of three UV wavelengths: 254, 365 or 312 nm. The darkroom is supplied without lamps and allows different lighting possibilities according to the user’s choice. Its main features are the following:
- Large capacity
- Black rubber curtain for easy access to the darkroom
- UV-absorbing shield to protect the user from UV light
- Removable VL-6 lamps that can be used for portable applications
CABINET CN-15
The CN-15 darkroom offers high effective capacity and UV power intensity unmatched in this field. The darkrooms offer any combination of UV sources, simultaneously or not. Its main features are the following:
- Extra-large capacity
- A black rubber curtain for easy access to the darkroom
- White light bulb for normal observation
- UV-absorbing shield to protect the user from UV rays
- Removable bottom panel for use with a Vilber Lourmat ETX fluorescent table
Model | Wavelength (nm) | Tubes x Power (W) | Irradiance (mW/cm²) |
CN-15.LM | 365 / 312 | 2 x 15 365nm & 2 x 15 312nm | 1.05 for 365nm – 1.30 for 312nm |
CN-15.LC | 365 / 254 | 2 x 15 365nm & 2 x 15 254nm | 1.05 for 365nm – 0.90 for 254nm |
CN-15.MC | 312 / 254 | 2 x 15 312nm & 2 x 15 254nm | 1.30 for 365nm – 0.90 for 254nm |
CN-15.LL | 365 | 4 x 15 | 2.00 |
CN-15.MM | 312 | 4 x 15 | 2.50 |
CN-15.CC | 254 | 4 x 15 | 1.75 |
Model |
CN-6 – The lamps are removable, the wavelengths can be chosen according to the application (choice between 254 nm, 365 nm or 312 nm) |
